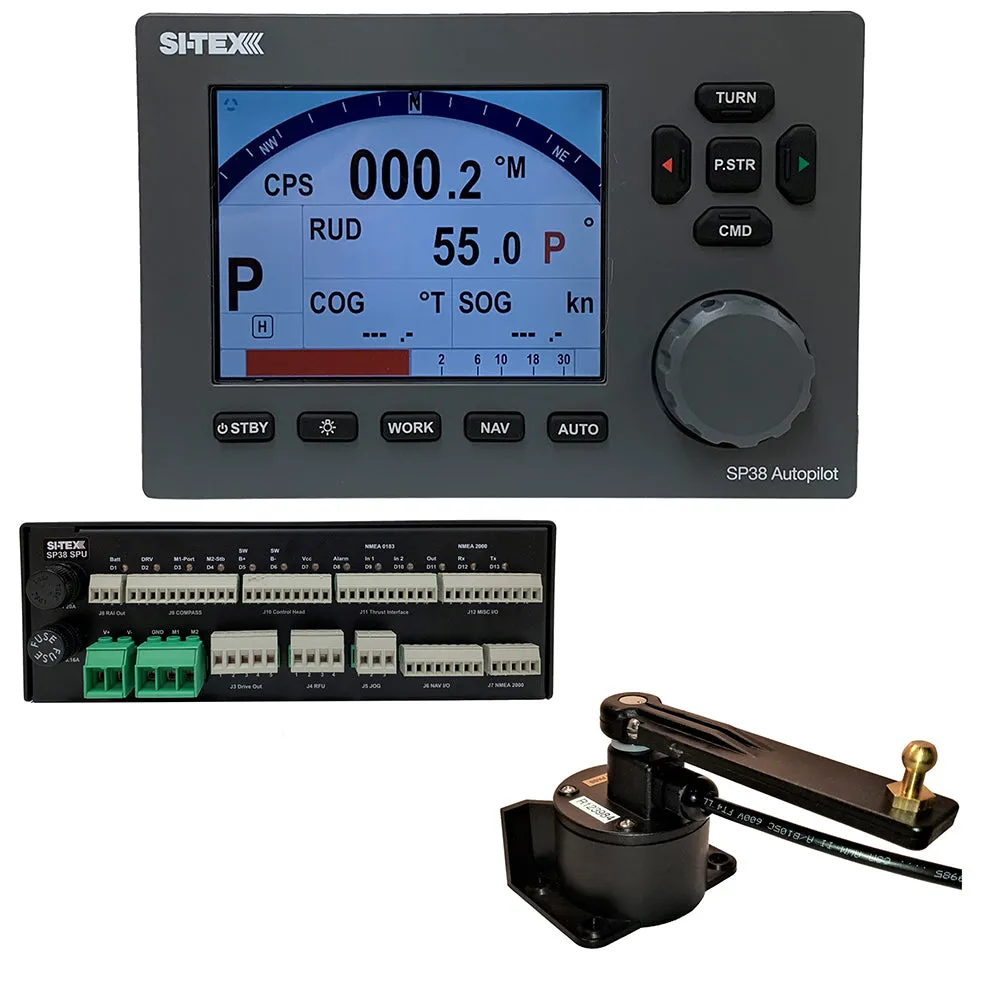

SP38-4 Autopilot Core Pack Including Rotary Feedback Only, No Compass or Pump

Features:

• IST Intelligent Steering Technology provides superior vessel steering capability
• ADAPTIVE steering for sea conditions and varying vessel speeds
• AUTO-SETUP allows auto-drive detection, rudder response time, compass detection and calibration
• NMEA 2000, ETHERNET, and NMEA 0183 interface
• Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yachts
• WORK Mode suitable for Fishing Boats, Towboats and Workboats
• PRC- Proportional Rate Control feature provides gentle smooth steering response
• Multi-Station capability with security station lock
• SUNLIGHT viewable Color 5.7 LCD display
• NAV Mode provide adaptive precise track steering
• ALC Automatic Leeway Compensation for Drift, Tide & Wind
• Fully compatible with onboard instruments and steering systems
• Optional Z-Drive interface allows 360 Azimuth drive interface
• Optional Automatic Bow-Thruster Control for hands free Sabiki Fishing or station keeping
• Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Vietnamese, etc.
• Standard with Flush Mount kit, Optional Swivel mount bracket
• IP67 Waterproof Control Head, TS4, NF4 and WS4
• RoHS & CE compliance for EMI and RFI immunity

Additional Features:

• 9 level backlit LCD display
• LCD Display switches to Red Night Palette to protect Operators night vision
• Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboat applications
• Multiple steering parameters for Fast cruise, Slow cruise and Work modes
• Simple to use course knob with mechanical detent
• Multi-station capability with security station lock
• Automatic trim
• Adjustable yaw, turn rate and rudder settings
• PORT and STBD dodge buttons for collision avoidance
• Output for optional analog rudder angle indicator, up to 4 stations
• Fully compatible with onboard NMEA N2K instruments and most steering systems

Specifications:

• Operating Voltage: 10 to 30 VDC
• Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) Drive Output: 20 Amps
• Network: NMEA 2000 & Ethernet
• Navigational Interface: NMEA 0183 input/Output
• NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)
• Heading Reference: Fluxgate, Magnetic Compass, NMEA Compass or Sat Compass
• Course Resolution: 1
• Course Detection: 0.5

Specifications:

• Type: Parts
• Box Dimensions: 7"H x 18"W x 18"L WT: 14.9 lbs
